引言

在使用 Chrome 浏览器的过程中,偶尔会遇到浏览器崩溃的情况。为了找出崩溃的原因并修复问题,我们需要对崩溃后的 .dmp 文件进行详细分析。本文将详细介绍如何从用户的系统中获取崩溃日志文件,使用 minidump_stackwalk 查看浏览器版本信息,下载对应的 symbols 文件,并使用 LLDB 进行详细分析。

第一步:获取崩溃日志文件

1.1 收集 .dmp 文件 当 Chrome 浏览器崩溃时,系统通常会生成一个 .dmp 文件,该文件包含了崩溃时的堆栈信息。用户可以在 Chrome 的崩溃报告目录中找到这些文件。路径通常为:

  • Windows: C:\Users<Username>\AppData\Local\Google\Chrome\User Data\Crash Reports
  • macOS: ~/Library/Application Support/Google/Chrome/Crash Reports
  • Linux: ~/.config/google-chrome/Crash Reports

第二步:使用 minidump_stackwalk 查看浏览器版本信息

2.1 安装 minidump_stackwalk

确保你的系统上安装了 minidump_stackwalk。你可以通过以下命令安装:

1
2
# macOS 和 Linux
brew install breakpad

或者从源码编译安装:

1
2
3
4
5
git clone https://chromium.googlesource.com/breakpad/breakpad
cd breakpad
./configure
make
sudo make install

2.2 使用 minidump_stackwalk 查看信息

使用 minidump_stackwalk 工具查看 .dmp 文件中的浏览器版本信息:

1
minidump_stackwalk your_crash.dmp /path/to/symbols

该命令会输出崩溃的详细信息,包括浏览器版本、模块列表等。根据输出的版本信息,

第三步:下载 symbols 文件

3.1 访问 Chrome 官方网站

根据 minidump_stackwalk 输出的版本信息,访问 Chrome 官方下载页面 下载对应的 symbols 文件。通常,symbols 文件可以在 Chrome 的开发者资源页面找到。 github 上有一个辅助下载脚本(download_symbols.py),有些处理过时了,略作修改如下所示:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
#!/usr/bin/env python3
# Copyright 2021 The Chromium Authors. All rights reserved.
# Use of this source code is governed by a BSD-style license that can be
# found in the LICENSE file.
"""Downloads symbols for official, Google Chrome builds.

Usage:
    ./download_symbols.py -v 91.0.4449.6 -a x86_64 -c stable -o /dest/path

This can also be used as a Python module.
"""

import argparse
import csv
import os.path
import platform
import subprocess
import sys
import urllib.request as request

# 这个地址已经失效了,channel 需要手动指定(比如 【stable】,可以在 https://chromiumdash.appspot.com/releases?platform=Mac 中查看)
_OMAHAPROXY_HISTORY = 'https://omahaproxy.appspot.com/history?os=mac&format=json'

_DSYM_URL_TEMPLATE = 'https://dl.google.com/chrome/mac/{channel}/dsym/googlechrome-{version}-{arch}-dsym.tar.bz2'


def download_chrome_symbols(version, channel, arch, dest_dir):
    """Downloads and extracts the official Google Chrome dSYM files to a
    subdirectory of `dest_dir`.

    Args:
        version: The version to download symbols for.
        channel: The release channel to download symbols for. If None, attempts
                 to guess the channel.
        arch: The CPU architecture to download symbols for.
        dest_dir: The location to download symbols to. The dSYMs will be
                  extracted to a subdirectory of this directory.

    Returns:
        The path to the directory containing the dSYMs, which will be a
        subdirectory of `dest_dir`.
    """
    if channel is None:
        channel = _identify_channel(version, arch)
        if channel:
            print('Using release channel {} for {}'.format(channel, version),
                  file=sys.stderr)
        else:
            print('Could not identify channel for Chrome version {}'.format(
                version),
                  file=sys.stderr)
            return None

    extracted_dir = _download_and_extract(version, channel, arch, dest_dir)
    if not extracted_dir:
        print('Could not find dSYMs for Chrome {} {}'.format(version, arch),
              file=sys.stderr)
    return extracted_dir


def get_symbol_directory(version, channel, arch, dest_dir):
    """Returns the parent directory for dSYMs given the specified parameters."""
    _, dest = _get_url_and_dest(version, channel, arch, dest_dir)
    return dest


def _identify_channel(version, arch):
    """Attempts to guess the release channel given a Chrome version and CPU
    architecture."""
    # First try querying OmahaProxy for the release.
    with request.urlopen(_OMAHAPROXY_HISTORY) as release_history:
        history = csv.DictReader(
            release_history.read().decode('utf8').split('\n'))
        for row in history:
            if row['version'] == version:
                return row['channel']

    # Fall back to sending HEAD HTTP requests to each of the possible symbol
    # locations.
    print(
        'Unable to identify release channel for {}, now brute-force searching'.
        format(version),
        file=sys.stderr)
    for channel in ('stable', 'beta', 'dev', 'canary'):
        url, _ = _get_url_and_dest(version, channel, arch, '')
        req = request.Request(url, method='HEAD')
        try:
            resp = request.urlopen(req)
            if resp.code == 200:
                return channel
        except:
            continue

    return None


def _get_url_and_dest(version, channel, arch, dest_dir):
    """Returns a the symbol archive URL and local destination directory given
    the format parameters."""
    args = {'channel': channel, 'arch': arch, 'version': version}
    url = _DSYM_URL_TEMPLATE.format(**args)
    dest_dir = os.path.join(dest_dir,
                            'googlechrome-{version}-{arch}-dsym'.format(**args))
    return url, dest_dir


def _download_and_extract(version, channel, arch, dest_dir):
    """Performs the download and extraction of the symbol files. Returns the
    path to the extracted symbol files on success, None on error.
    """
    url, dest_dir = _get_url_and_dest(version, channel, arch, dest_dir)
    if not os.path.isdir(dest_dir):
        os.mkdir(dest_dir)

    print('download from {}'.format(url), file=sys.stderr)
    print(url, file=sys.stderr)

    try:
        with request.urlopen(url) as symbol_request:
            print('Downloading and extracting symbols to {}'.format(dest_dir),
                  file=sys.stderr)
            print('This will take a minute...', file=sys.stderr)
            if _extract_symbols_to(symbol_request, dest_dir):
                return dest_dir
    except:
        print('load failed!!!', file=sys.stderr)
        pass
    return None


def _extract_symbols_to(symbol_request, dest_dir):
    """Performs a streaming extract of the symbol files.

    Args:
        symbol_request: The HTTPResponse object for the symbol URL.
        dest_dir: The destination directory into which the files will be
                  extracted.

    Returns: True on successful download and extraction, False on error.
    """

    proc = subprocess.Popen(['tar', 'xjf', '-'],
                            cwd=dest_dir,
                            stdin=subprocess.PIPE,
                            stdout=sys.stderr,
                            stderr=sys.stderr)
    while True:
        data = symbol_request.read(4096)
        if not data:
            proc.stdin.close()
            break
        proc.stdin.write(data)
    proc.wait()

    return proc.returncode == 0


def main():
    parser = argparse.ArgumentParser()
    parser.add_argument('--version',
                        '-v',
                        required=True,
                        help='Version to download.')
    parser.add_argument(
        '--channel',
        '-c',
        help='Chrome release channel for the version. The channel will be ' \
             'guessed if not specified.'
    )
    parser.add_argument(
        '--arch',
        '-a',
        help='CPU architecture to download, defaults to that of the current OS.'
    )
    parser.add_argument('--out',
                        '-o',
                        required=True,
                        help='Directory to download the symbols to.')
    args = parser.parse_args()

    arch = args.arch
    if not arch:
        arch = platform.machine()

    if not os.path.isdir(args.out):
        print('--out destination is not a directory.', file=sys.stderr)
        return False

    return download_chrome_symbols(args.version, args.channel, arch, args.out)


if __name__ == '__main__':
    main()

3.2 放置 symbols 文件

将下载的 symbols 文件放置在你指定的目录,例如 /path/to/symbols。

第四步:使用 LLDB 进行详细分析

4.1 安装 LLDB

确保你的系统上安装了 LLDB。大多数现代 macOS 和 Linux 发行版都自带了 LLDB,Windows 用户可以通过 Visual Studio 安装。

4.2 使用 LLDB 分析 .dmp 文件

打开终端,使用以下命令加载 .dmp 文件并进行分析:

1
2
3
4
lldb
(lldb) settings set target.exec-search-paths /symbol/file/path
(lldb) target create --core "/dmp/file/path"
(lldb) thread backtrace all

确保将 /path/to/executables 替换为你的 symbols 文件路径。

4.3 查看堆栈跟踪

使用以下命令查看崩溃时的堆栈跟踪:

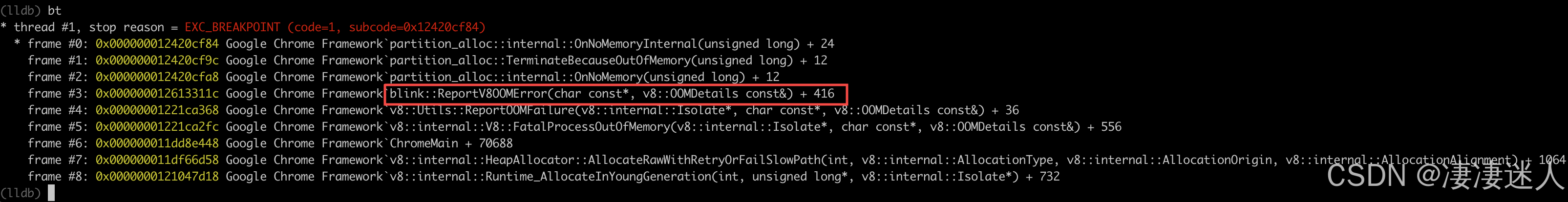

(lldb) bt 这将显示详细的堆栈跟踪信息,帮助你定位崩溃的具体位置。之前定位过一个问题如下图所示:

crash信息截图

crash信息截图

可以看出发生了 OOM,内存占用过大导致崩溃。

4.4 进一步调试

根据堆栈跟踪信息,你可以进一步调试,例如:

  • 检查变量值
  • 打印内存内容
  • 断点调试
1
2
(lldb) frame variable
(lldb) memory read --size 16 --format x --count 10 <address>

结论

这一过程有助于深入理解崩溃的原因,并采取相应的修复措施。希望本文能帮助你有效地分析 Chrome 浏览器的崩溃问题。如果你有任何疑问,欢迎一起探讨。
